|May 12, 2010 - Exhaust work continues.|

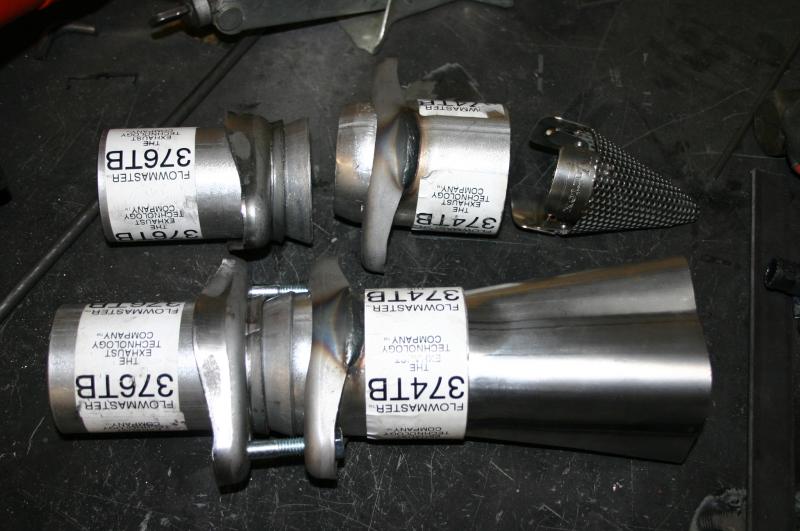

I now have the system complete up to the entrance to the x-pipe. Now I have to figure out the headers. My collectors have a 3" outlet and the rest of my exhaust system is 2.5", so I plan to use these ball flanges to neck things down while also providing a good spot to disassemble the exhaust. The problem is that the whole assembly is pretty long as you can see. I've cut down most of the parts and taken a significant amount of length out since this photo was taken. You can see the conical insert from Dynatech that should drop the sound level by around 2-3 dB.
I'd prefer to be using a slip-on collector as they're a lot easier to deal with than this minimalist one - but unfortunately, I don't have any. So I'll have to cope with it.
tags: exhaust, collector
