March 1, 2010 - More parts have arrived!

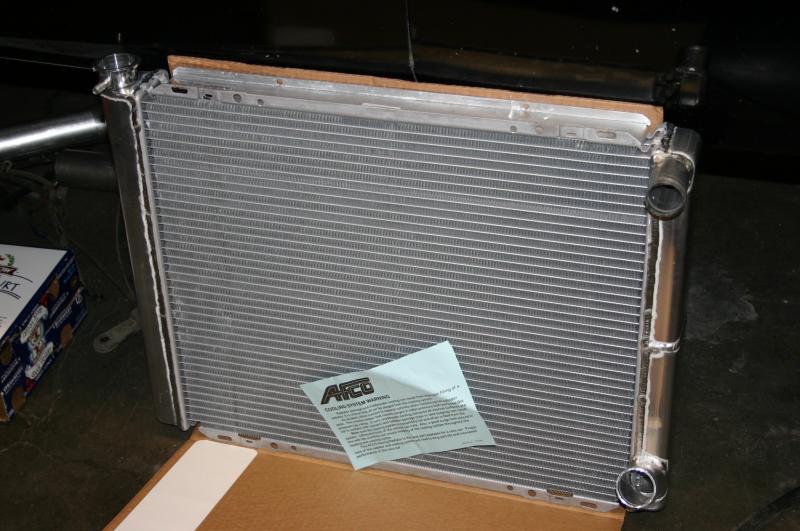

This shipment is from AFCO. Along with some interesting suspension bits for the Targa Miata came this radiator. It's a dual-pass setup for maximum efficiency and it's huge! Seriously, it's the smallest rad I found that I thought would work and it's also the biggest radiator I thought I could fit: 26" wide and 20" tall. There's going to be some serious surgery ahead to make this work, and I think it's going to also entail hood pins. I just hope I can make it fit without hanging it down below the body.
There was one more option, a Scirocco style unit. Nice and small, also a dual pass. But the core size is 12.5 x 18", and my current rad is 18.5 x 22.5". That Scirocco one is just tiny. There are also some single-pass units that are a bit smaller, but the dual pass packages better in terms of outlet location.
Eek, this is going to be a challenge. At least I know that, once installed, this car will be immune to overheating. I hope.
tags: cooling, packagin
