February 16, 2010 - After all the extra wires were popped out of the connector, I started pulling them out of the harness.
I'd follow them back through the other wires to find what connector they went to. I unwrapped the harness (put together with a minimum of super-sticky tape, unlike the Miata!) and used zipties to hold it in shape.
Some connectors had other wires that were shared, typically power and ground. These were chased back to junctions with other wires and snipped off. The pink power wires will have to be taped up before I energize the harness. Gradually, the harness got simpler and simpler.

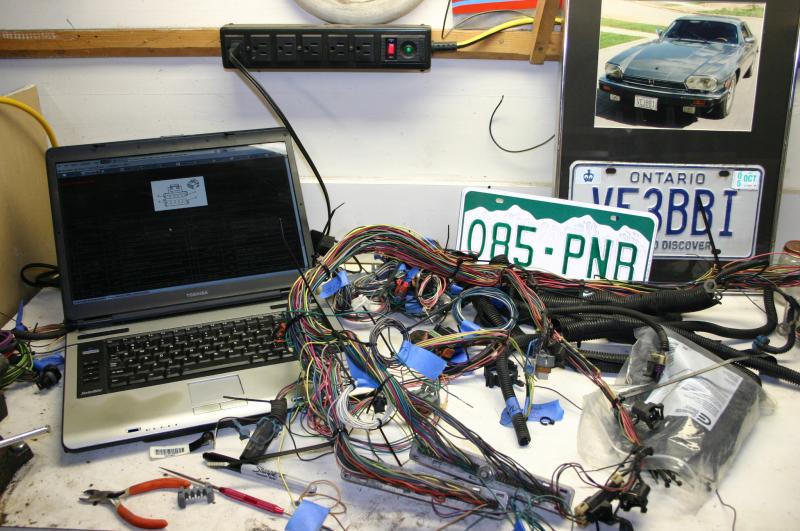

I used (no, that's not a typo) to identify some of the wires in the various inline connectors. The "keep" wires that passed through these were typically things such as gauge information, so I pulled them out of the inline connectors, coiled them up and labelled them. I also replaced a hacked-up tach wire with one of an identical color - did the Camaro previously have a big aftermarket tach?
The Jaguar approves.
tags: wiring
